Namespace, ResourceQuota, LimitRange (기초)



이 글은 인프런의 대세는 쿠버네티스 강의를 보며 정리한 글입니다.











Namespace



- 한 네임스페이스안에 같은 object의 이름은 중복이 불가

- 같은 파드를 중복이 불가

- 타 네임스페이스와 리소스가 분리

- namespace를 지우면 안의 리소스도 다 지워짐





ResourceQuota



- 네임스페이스의 자원 한계를 정의함

- 파드는 자원을 나타내야 함

- 네임스페이스의 자워 한계를 넘기는 파드는 못 만듬







LimitRange



- 각 파드의 자원 한계를 정의함

- min~max로 정의

- request와 limit의 비율 한계도 정해줄 수 있다. (maxLimitRequestRatio)



















실습

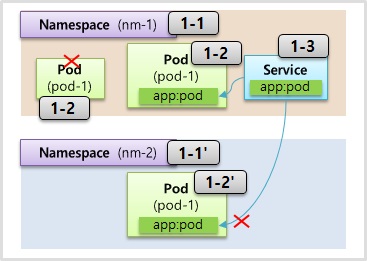

1. Namespace

---

1-1) Namespace

apiVersion: v1
kind: Namespace
metadata:
  name: nm-1

1-2) Pod

apiVersion: v1
kind: Pod
metadata:
  name: pod-1
  namespace: nm-1
  labels:
    app: pod
spec:
  containers:
  - name: container
    image: kubetm/app
    ports:
    - containerPort: 8080

1-3) Service

apiVersion: v1
kind: Service
metadata:
  name: svc-1
  namespace: nm-1
spec:
  selector:
    app: pod
  ports:
  - port: 9000
    targetPort: 8080



1-1') Namespace

apiVersion: v1
kind: Namespace
metadata:
  name: nm-2

1-2') Pod

apiVersion: v1
kind: Pod
metadata:
  name: pod-1
  namespace: nm-2
  labels:
    app: pod
spec:
  containers:
  - name: container
    image: kubetm/init
    ports:
    - containerPort: 8080



pod ip :

curl 10.16.36.115:8080/hostname

service ip :

curl 10.96.92.97:9000/hostname



Namespace Exception

---

e-1) Service

apiVersion: v1
kind: Service
metadata:
  name: svc-2
spec:
  ports:
  - port: 9000
    targetPort: 8080
    nodePort: 30000
  type: NodePort

e-2) Pod

apiVersion: v1
kind: Pod
metadata:
 name: pod-2
spec:
  nodeSelector:
    kubernetes.io/hostname: k8s-node1
  containers:
  - name: container
    image: kubetm/init
    volumeMounts:
    - name: host-path
      mountPath: /mount1
  volumes:
  - name : host-path
    hostPath:
      path: /node-v
      type: DirectoryOrCreate

echo "hello" >> hello.txt

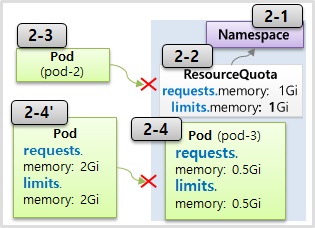

2. ResourceQuota

---

2-1) Namespace

apiVersion: v1
kind: Namespace
metadata:
  name: nm-3

2-2) ResourceQuota

apiVersion: v1
kind: ResourceQuota
metadata:
  name: rq-1
  namespace: nm-3
spec:
  hard:
    requests.memory: 1Gi
    limits.memory: 1Gi

ResourceQuota Check Command

kubectl describe resourcequotas --namespace=nm-3

2-3) Pod

apiVersion: v1
kind: Pod
metadata:
  name: pod-2
spec:
  containers:
  - name: container
    image: kubetm/app

2-4) Pod

apiVersion: v1
kind: Pod
metadata:
  name: pod-3
spec:
  containers:
  - name: container
    image: kubetm/app
    resources:
      requests:
        memory: 0.5Gi
      limits:
        memory: 0.5Gi

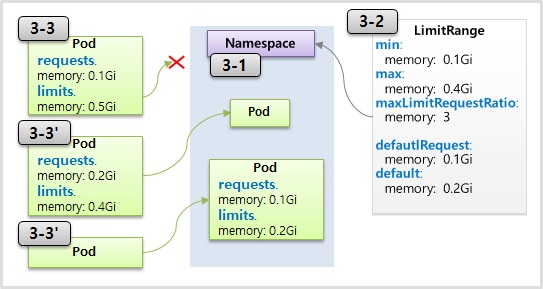

3. LimitRange

---

3-1) Namespace

apiVersion: v1
kind: Namespace
metadata:
  name: nm-5

3-2) LimitRange

apiVersion: v1
kind: LimitRange
metadata:
  name: lr-1
spec:
  limits:
  - type: Container
    min:
      memory: 0.1Gi
    max:
      memory: 0.4Gi
    maxLimitRequestRatio:
      memory: 3
    defaultRequest:
      memory: 0.1Gi
    default:
      memory: 0.2Gi

LimitRange Check Command

kubectl describe limitranges --namespace=nm-5

3-3) Pod

apiVersion: v1
kind: Pod
metadata:
  name: pod-1
spec:
  containers:
  - name: container
    image: kubetm/app
    resources:
      requests:
        memory: 0.1Gi
      limits:
        memory: 0.5Gi



LimitRange Exception

---

e-1) Namespace

apiVersion: v1
kind: Namespace
metadata:
  name: nm-6

e-2) LimitRange

apiVersion: v1
kind: LimitRange
metadata:
  name: lr-5
spec:
  limits:
  - type: Container
    min:
      memory: 0.1Gi
    max:
      memory: 0.5Gi
    maxLimitRequestRatio:
      memory: 1
    defaultRequest:
      memory: 0.5Gi
    default:
      memory: 0.5Gi

e-3) LimitRange

apiVersion: v1
kind: LimitRange
metadata:
  name: lr-3
spec:
  limits:
  - type: Container
    min:
      memory: 0.1Gi
    max:
      memory: 0.3Gi
    maxLimitRequestRatio:
      memory: 1
    defaultRequest:
      memory: 0.3Gi
    default:
      memory: 0.3Gi

e-4) Pod

apiVersion: v1
kind: Pod
metadata:
  name: pod-1
spec:
  containers:
  - name: container
    image: kubetm/app







현재 실습 환경이 준비가 안되어 나중에 해보기
